ASTM A790/A789 UNS S32750 SUPER DUPLEX STEEL SEAMLESS PIPES & TUBES

ISO Approved Manufacturer & Exporter of ASTM A790/A789 UNS S32750 Super Duplex Steel Pipes & Tubes.


ASTM A790 UNS S32750 Super Duplex 2507 werkstoff nr.1.4410 Seamless Pipes & Tubes Manufacturer, Exporter & Suppliers.


UNS S32750 Super Duplex Steel Seamless Pipes & Tubes, Welded Pipes & Tubes, ERW Pipes Suppliers in India.


super duplex steel

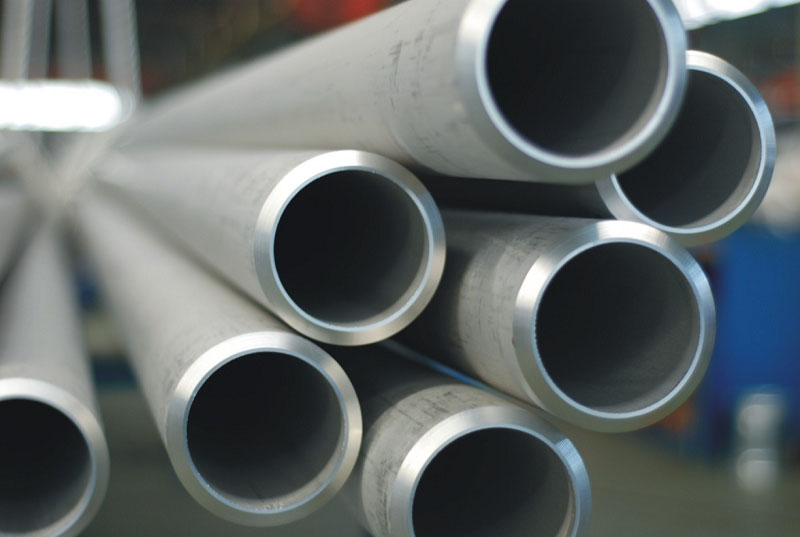

UNS S32750 Super Duplex Steel Pipes & Tubes

SAF 2507 / 1.4410 is a super duplex stainless steel with 25% chromium, 4% molybdenum, 7% nickel . This kind of pipes always purchased by the clients who are require exceptional strength and corrosion resistance . The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity and a low coefficient of thermal expansion. And the high chromium, molybdenum, and nitrogen levels provide excellent resistance to pitting, crevice, and general corrosion.

Most of 2507 / 1.4410 duplex steel pipes are produced by cold drawn method . The alloy has higher yield strength and lower ductility than austenitic steels so fabricators may fid that higher forming forces , increased radius of bending , and increased allowance for springback are necessary . Deep drawing , stretch forming , and similar processes are more difficult to perform on 2507 than on an austenitic stainless steel . When forming requires more than 10% cold deformation , a solution anneal and quench are recommended . And finished cold drawn duplex steel pipe , manufacturer should be solution annealed and quenched . The minimum annealing tempeture is 19250F . Annealing should be followed immediately by a rapid air or water quench. To obtain maximum corrosion resistance, heat treated products should be pickled and rinsed .

STANDARD UNS WERKSTOFF NR.
Super Duplex S2507 S32750 1.4410

Specfication

Material Grade S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc
Outer Diameter 5.80mm – 323.90mm (0.23″ to 12″)
Wall Thickness 0.71mm – 25.4mm (0.04″ to 1″)
Length as per customers requirement
Standard ASTM A789 ; ASTM A790 ; EN 10216-5ect .
Application a) Petroleum
b) Chemical industry
c) Instrument
d) Industrial transportation
e) Mechanical structure industry
f) Need high corrision ability pipe’s industry , such as offshore industry etc
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment

Chemical Composition :

UNS No Grade C Si Mn P S Cr Mo Ni N Other
S32750 2507 0.030 0.80 1.20 0.035 0.020 24.0/26.0 3.0/5.0 6.00/8.00 0.24/0.32 Cu:0.50

Mechanical Properties:

UNS No Grade Proof Stress0.2% (MPa) Tensile Strength(MPa) ElongationA5(%) Hardness Max
HB HRB
S32750 2507 550 795 15 310 32*

Type Of UNS S32750 Super Duplex Steel Seamless Pipes & Tubes

  • UNS S32750 Tubes
  • UNS S32750 Welded Pipes
  • UNS S32750 Seamless Pipes
  • Super Duplex Tubes
  • Super Duplex Steel Welded Pipes
  • Super Duplex Steel Seamless Pipes
  • Super Duplex 2507


    • Applications:

    • Electronics
    • Transport and traffic
    • Pulp and paper industry
    • Medicine
    • Fertilizers
    • Valve & Pumps
    • Petrochemical
    • Architecture and construction
    • Aerospace
    • Nuclear Power
    • Energy industry
    • Chemicals industry
    • Nickel Alloy in Pulp and Paper
    • Motor industry
    • Food and drink


    Available Super Duplex Stainless Steel Pipes

      Super Duplex stainless steel 2507 Seamless Pipe Inconel Pipe Tubes at factory rate Super Duplex stainless steel 2507 Seamless Tube Inconel Pipe Tubes at factory rate Super Duplex stainless steel 2507 Welded Pipe Inconel Pipe Tubes at factory rate Super Duplex stainless steel 2507 Welded Tube Inconel Pipe Tubes at factory rate Super Duplex stainless steel pipe
