ALLOY STEEL PIPE GRADES

ALLOY STEEL PIPE GRADES

PED Approved Manufacturer & Supplier of Alloy Steel Pipe, Alloy Steel Heater Tubes, Alloy Steel ERW Pipe, Alloy Steel Heat Exchanger Tube,Alloy steel seamless pipes manufacturers in india,Alloy Steel Heat Exchanger Tubes Manufacturers in India,IBR Approved Pipes, Alloy Steel EFW Pipe, Alloy Steel Welded Pipe


Chrome Moly ASME SA 335 Pipe known as Alloy Steel Pipe is reasonable choice for High Pressure Loading & High Temperature Service, Indian Boiler Regulations,alloy steel material suppliers


click here for Latest Price list of ASTM A335/ASME SA 335 P5, P9, P11, P22, P91 Seamless Pipes & Tubes Suppliers & Manufacturer In India, Alloy Steel pipe Available in Size Range of 1/2″ NB to 36″ NB

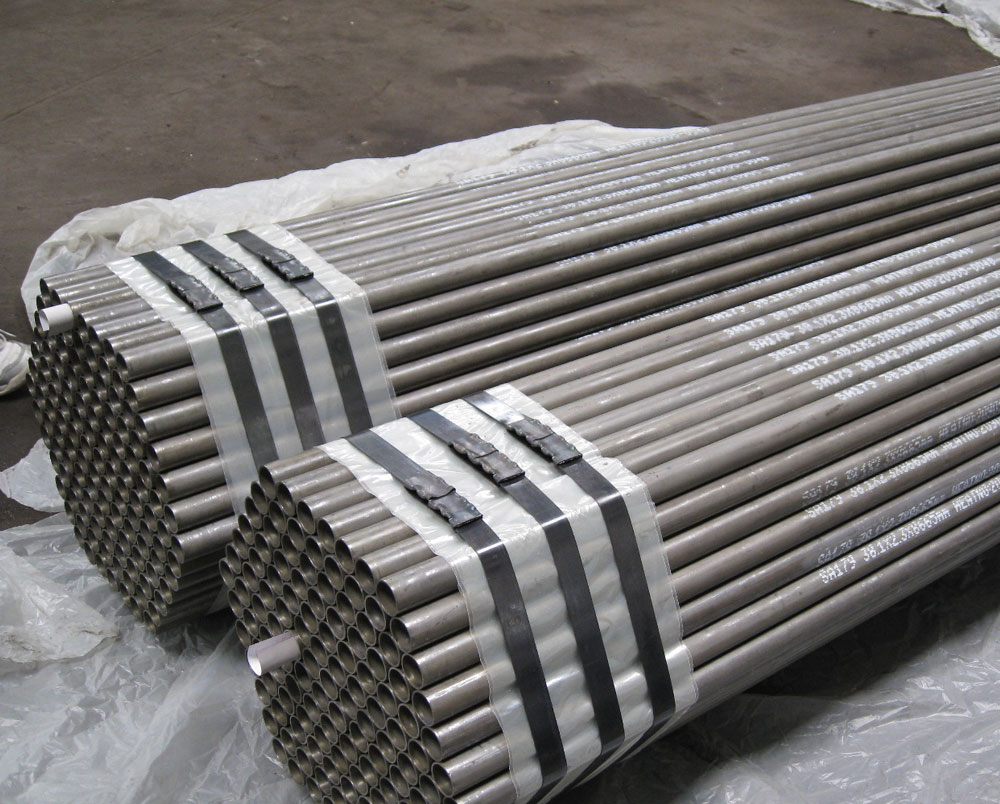

Alloy Steel Pipe

A335 Alloy Steel Seamless Pipes & Tubes | ASTM A335 | GR P5 | P9 | P11 | P22 | P91

Alloy steel seamless pipes manufacturers in india | alloy steel tubes manufactures in india| Alloy Steel Heat Exchanger Tubes Manufacturers in India | IBR Approved Pipes | Indian Boiler Regulations Are you looking for Prime quality & High Grade Alloy Steel Seamless or welded Pipe for high Pressure loading or High temperature Applications, Nascent Group is one of most trusted Manufacturers,Suppliers & exporters of Ferritic Alloy-Steel Pipe since 1980, Nascent Group is known as a Experts in Manufacturing Alloy Steel Boiler Tubes, Alloy Steel Heat Exchanger tubes, Heater Tubes & Capillary Tubes.

Nascent Group is a leading worldwide supplier of ASTM A335/ASME SA335 P5, P9, P11, P22, P91 grade alloy steel pipes and alloy steel tubes,currently we are exporting to more than 80 countries & established our sales network in Malaysia, Nigeria, Egypt, South Africa, Tanzania, Kenya, Algeria,Sudan, Uganda, Morocco,Ghana, Mozambique, Angola, Gabon,Russia, Germany, Turkey, France, United Kingdom, Italy,Spain, Netherlands, Iran, Iraq, Saudi Arabia, United Arab Emirates, Israel, Jordan,Oman, Kuwait, Qatar,Bahrain,Bangladesh,China, Indonesia, Japan, Philippines, Singapore, Sri Lanka, Thailand,Vietnam,Brazil, Colombia,Argentina, United States, Mexico, Canada & Australia.

We are specialized in offering precision engineered alloy steels, which are used in various engineering applications and can be availed in various grades like ASTM A335 Alloy Steel Pipe in grade P1, P2, P5, P9, P11, P12,P22, P23, P91, P92 and ASTM A213 Alloy Steel Pipe in grade T2, T5, T5b,T5c,T9, T11, T12, T22, T23, T91, T92 . these grades are available in the form of Alloy Steel Pipe.

Alloy Steel contains substantial quantities of elements other than carbon such as nickel, chromium, silicon, manganese, tungsten, molybdenum, vanadium and limited amounts of other commonly accepted elements such as manganese, sulfur, silicon, and phosphorous. Addition of such alloying elements is usually for the purpose to increase hardness, strength or chemical resistance.Pipes made of alloy steel have exceptional performance properties. These are generally developed for energy-related applications involving oil and gas drilling and are subjected to stresses in machine parts. Alloy Steel Tubes are also used in daily life, catering to the domestic, professional or industrial needs. In recent years, the demand for alloy steel tubing has been increasing along with the economic growth.


Nascent Group Manufacture & export complete range of A335 pipe,we are exporting & marketing under our registered brand name Nascent Group

Size Range
1/8″ – 26″
Schedules
20 SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Standards
ASME, ASTM
Type
Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form
Round, Square, Rectangular, Hydraulic Etc.
End
Plain End, Beveled End, Treaded.
Length
Single Random, Double Random & Cut Length.

Unscheduled heavy wall pipe thicknesses also readily available up to 4 inches.

ASTM A335 Alloy Steel Seamless Pipes & Tubes Specification
Alloy Steel Pipe ASTM A335 GR P5 | P9 | P11 | P22 | P91 | P91 with IBR Certified (ASTM A335 / A335M – 11 Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service)

ASTM A335 Alloy Steel Seamless Pipes

This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Grade P2 and P12 steel pipes shall be made by coarse-grain melting practice.

ASTM A335 GR P5 | GR P9 | GR P11 | GR P22 | GR P91.

Name: ASTM SA335 Alloy Steel Tubes for boilers, superheaters and heat exchangers
Size (mm): O.D.: 28-168; W.T.: 2∼30; L: max 12000

Description:

1. Specifications: ASTM A335 (ASME SA335)

2. Specifications: diameter 320 to 127 mm; thickness: 0.4 to 12.7 mm; length: 6 m and above; and other specifications in accordance with customer requirements.

Features Specifications:


Standard
Steel Code
Tensile Strength (MPa)
Yield Strength (MPa)
Elongation Percentage(%)
Impact Power(J)
Rigidity
ASME SA335
SA335 P11
≥415
≥205
≥22
≥35
≤163HB
SA335 P12
≥415
≥220
≥22
≥35
≤163HB
SA335 P22
≥415
≥205
≥22
≥35
≤163HB
SA335 P5
≥415
≥205
≥22
≥35
≤187HB
SA335 P91
585∼760
≥415
≥20
≥35
≤250HB
SA335 P92
≥620
≥440
≥20
≥35
≤250HB

ASTM A213 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Heat-Exchanger Tubes

ASTM A213 Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, Heat-Exchanger Tubes.

Boiler tube accord to standard ASTM SA213 / A213 – Grades T5, T9, T11, T22, T91

Foreign boiler tube Standard:

  • GB3087 – Chinese National Standard
  • GB5310 – Chinese National Standard
  • ASME SA106 – American Boiler and Pressure Vessel Code
  • ASME SA333 – American Boiler and Pressure Vessel Code
  • ASME SA335 – American Boiler and Pressure Vessel Code
  • DIN17175 – German industrial standard
  • EN10216-2 – European Pressure Piping


The main production steel grades:
10 , 20 , 20G , 20MnG , 25MnG , 15CrMoG , 12Cr2MoG , 12Cr1MoVG , 10Cr9Mo1VNb , SA106B ,SA106C , SA333 I level, SA333 VI level, SA335 P5 , SA335 P11 , SA335 P12 , SA335P22 , SA335 P91 ,SA335 P92 , ST45.8 / Ⅲ , 15Mo3 , 13CrMo44 , 10CrMo910 , 15NiCuMoNb5-6-4, etc.

Boiler and heat exchanger tube

Standard :

JIS  G3461 —- Japanese Industrial Standard
JIS  G3462 —- Japanese Industrial Standards

Uses :

For the boiler pipes, tobacco pipes, superheater tubes, air preheater tubes.

The main production steel grades :

STB340 , STB 410 , STBA22 , STBA23 so on.


Type of Steel Pipes
OD(D)
WT(S)
Cold Drawn Steel Pipe
OD(mm)
Tolerance (mm)
Wall Thickness(mm)
Tolerance (mm)
>30∼50
±0.3
>3∼20
±10%
>114∼159
±0.8%
≤30
±10%
>159∼219
±1.0%
Hot Rolled Steel Pipe
>219∼457
±1.0%
≤20
+10%,-12.5%
>20∼40
+10%,-10%

Material & Manufacture
Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

  • A / N+T
  • N+T / Q+T
  • N+T


Mechanical Tests Specified

  • Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test
  • For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.
  • For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.


Notes for Bend Test:

  • For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.
  • Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.
  • The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.


Nascent Group is well known Supplier of Alloy Steel Pipe in following industries:

  • Chemical & fertilisers
  • Power Generation
  • Oil and Gas
  • Fabrication and Construction
  • Manufacturing


Nascent Group is maintain huge ready stock of following Grades Of Alloy Steel Pipe

ASTM A335 Alloy Steel Pipe

  • astm a335 alloy steel pipe
  • astm a335 p22 pipe
  • astm a335 p11
  • astm a335 p22
  • astm a335 p91
  • astm a335 grade p11
  • astm a335 grade p22
  • astm a335 grade p91
  • a335 p11 pipe suppliers
  • a335 p22 pipe suppliers

ASTM A213 Alloy Steel Pipe

  • astm a213 alloy steel pipe
  • asme sa213 grade t11
  • astm a213 t2
  • astm a213 t5
  • astm a213 t5b
  • astm a213 t5c
  • astm a213 t9
  • astm a213 t11
  • astm a213 t12
  • astm a213 t22
  • astm a213 t23
  • astm a213 t91
  • astm a213 t92
