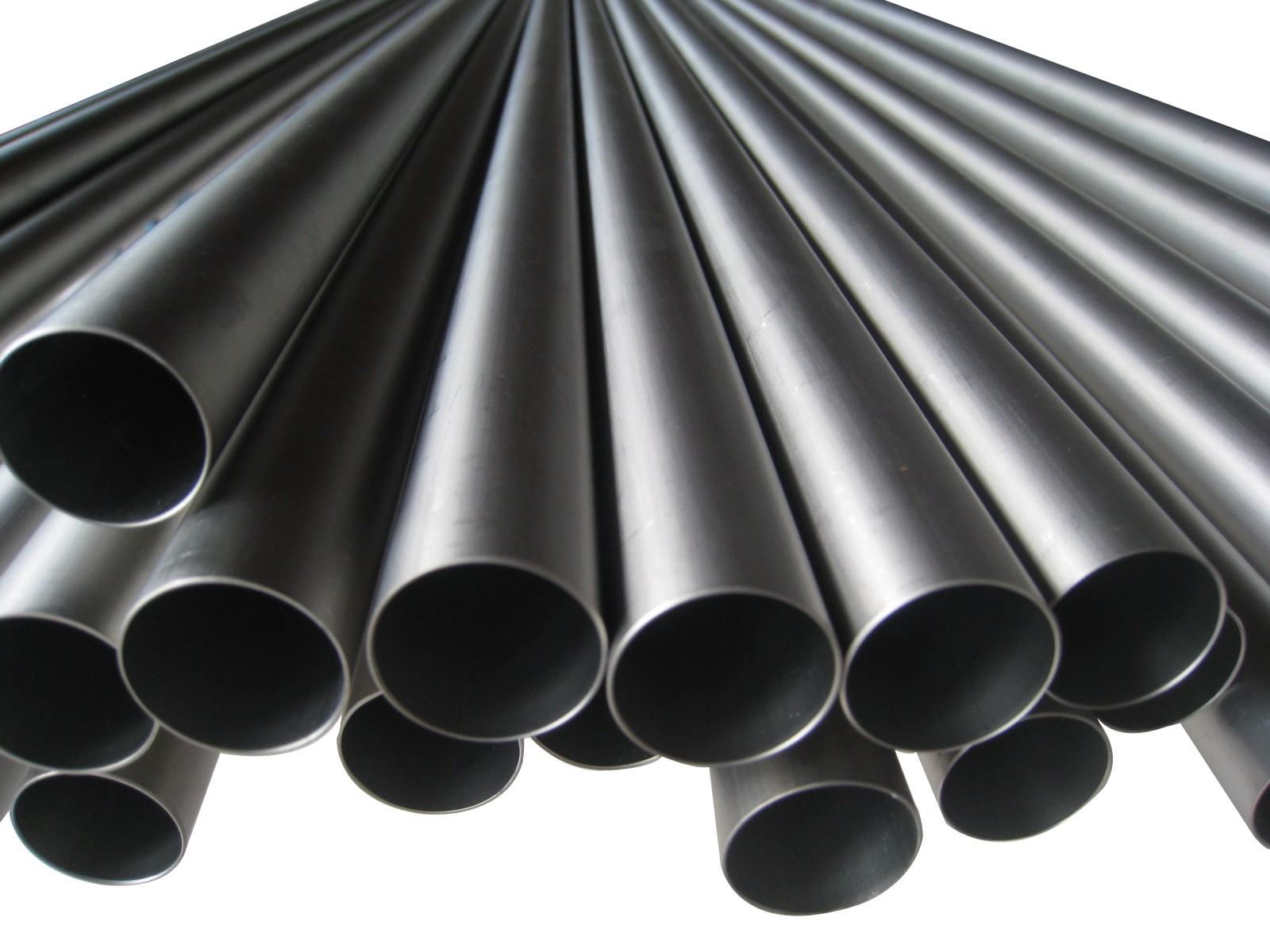

Nascent Group are Manufacturer, Supplier & Exporter of Monel 400 Pipes & Tubes. ASTM, ASME SB 163 / 165. These are available in grades Monel 400 (uns no. N04400). They are available in the coil, square, round, rectangular & U shape, and others are available in horn tube, capillary tube, IBR tube, and precision tube, hydraulic tube, boiler tube.Nascent Group are best quality monel 400 pipes and tubes Supplier in india.
Specifications :-
Standards | ASTM / ASME |
Grade | Monel 400 (UNS No. N04400) Pipes & Tubes. Monel 400 Seamless Pipes & Tubes: B 161 / SB 163 Monel 400 Welded Pipes & Tubes: B 725 / SB 775 |
Size | 15″NB TO 150″NB IN |
Length | Double Random, Single Random, Cut Length |
Type | Seamless, Welded, Fabricated, ERW / CDW |
Form | Round, Rectangular, Hydraulic, Square, |
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
Monel 400 | 2.4360 | N04400 | NW 4400 | NU-30M | NA 13 | ????? 28-2,5-1,5 | NiCu30Fe |
Chemical Composition :
Monel 400 | Ni | Fe | C | Mn | Si | Cu | Al | S |
63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
Mechanical & Physical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.8 g/cm3 | 1350 C (2460 F) | Psi 80,000 , MPa 550 | Psi 35,000 , MPa 240 | 40 % |
Applications:
Types of Monel 400 Pipes & Tubes:
ASTM B163/B725 Monel 400 Pipe Specifications
STANDARD | WERKSTOFF NR. | UNS | JIS | EN | BS | GOST | AFNOR |
Monel 400 | 2.4360 | N04400 | NW 4400 | NiCu30Fe | NA 13 | ????? 28-2,5-1,5 | NU-30M |
Sr. No.
|
Material
|
Size
|
Sch.
|
Specification
|
Manufacturer
|
---|---|---|---|---|---|
1
|
Monel 400 Seamless Pipe
|
15 NBTo 300 NB |
Sch. 5sSch. 10s Sch. 40s Sch. 80s Sch. 160s Sch. XXS |
ASTM B163/ ASME SB163
|
Sumitomo Metals, JapanNippon Steel Corporation, Japan
Kobe Special Tube, Japan Sanyo Special Steel, Japan Tubacex Tubos Inoxidables S.A., Spain Schoeller Bleckmann, Austria Seah Steel Corporation, Korea |
2
|
Monel 400 Welded (ERW) Pipe
|
15 NBTo 300 NB |
Sch. 5sSch. 10 Sch. 40s & Sch. 80s |
ASTM B725/ ASME SB725
|
|
3
|
Monel 400 Welded (ERW) Pipe
|
150 NBTo 600 NB |
Sch. 5sSch. 10s Sch. 40s & Sch. 80s |
ASTM B725/ ASME SB725
|
Note:- | ||||
---|---|---|---|---|
Grade |
|
|
||
Monel 400 Special Pipes
|
Fabricated Pipe (with radiography)
|
|||
Monel 400 Pipe In Form of
|
RoundSquare Rectangle |
OvalCoil Flexible Pipe |
ShaftU Shape Hydraulic pipe etc. |
|
Monel 400 Pipe In Length of
|
Standard & Cut length
|
|||
Monel 400 Pipe Value Added Service
|
Draw & Expansion as per required Size & LengthPolish (Electro & Commercial) Heat Treatment
Bending Annealed & Pickled Sand Blasting Machining Etc. |
|||
Monel 400 Pipe Test Certificate
|
Manufacturer Test CertificateLaboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection |
|||
Specialize Pipe
|
Fabricated PipeSquare & Rectangle &
Other Odd Size |
