ZERON 100 SUPER DUPLEX STEEL SEAMLESS PIPES
ZERON 100 SUPER DUPLEX STEEL SEAMLESS PIPES
ISO Approved Manufacturer & Exporter of ASTM A790, A789 ZERON 100 Super Duplex Steel Seamless Pipes
ASTM A790 UNS S32760 ZERON 100 werkstoff nr.1.4501 Seamless Pipes & Tubes Manufacturer, Exporter & Suppliers.
UNS S32760 Super Duplex Steel Seamless Pipes & Tubes, Welded Pipes & Tubes, ERW Pipes Suppliers in India.

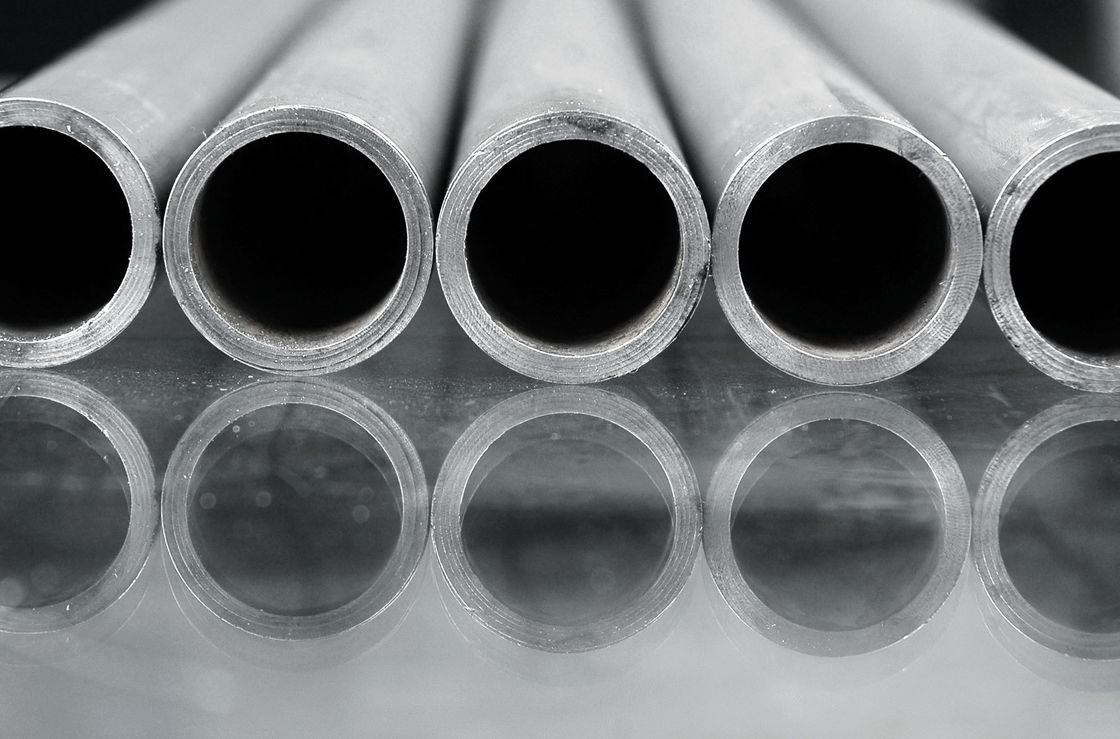

ZERON 100 Super Duplex Steel Seamless Pipes
The combination of the above properties makes ZERON 100 the optimum choice in a range of industries. Oil and gas industry applications include process, seawater, firewater, and subsea pipework systems, with associated risers, manifolds, pressure vessels, valves and heat exchangers. Applications of ZERON 100 in other industries include pipework systems and associated engineering equipment for pollution control, pulp and paper, power generation, flue gas desulphurisation, chemical, pharmaceutical, desalination, mining, metallurgical and marine industries. We are also provide EQUIVALENT GRADES like DIN 1.4501, UNS S32760.
| Grade | DIN | UNS |
| Zeron 100 | 1.4501 | S32760 |
Specifications
UNS S32760 , (J93380 Castings), Werkstoff 1.4501 (1.4508 Castings)
- ASME: B16.5, B16.34, B16.47, B31.3, Sec. VIII Division 1 Case 2244-2, 2245-1, Sec. III Division 1 Case N-564-2
- ASTM: A 182 (Grade F55), A 240, A 276, A 314, A 473, A 479, A 789, A 790, A 815, A890, A 928, A 988, A 995
- European: EN 10028-7, EN 10088-2, EN 10088-3, EN 10272, EN 10216-5, EN 10217-7 NACE: ISO 15156 / MR0175 Part 3
- API 5LC, BSI PD 5500 Enquiry Case 5500/87
Chemical Composition, %
| Cr | Ni | Mo | C | W | Cu |
| 24.0-26.0 | 6.0-8.0 | 3.0-4.0 | 0.030 Max | 0.5-1.0 | 0.50-1.0 |
| N | Mn | Si | P | S | Fe |
| 0.2-0.3 | 1.00 Max | 1.0 Max | 0.03 Max | 0.01 Max | Balance |
ASTM Specifications
| Pipe & Tube | Sheet/Plate | Bar |
| A790, A928, A789 | A240 | A276 |
Mechanical Properties
Room Temperature, Solution Annealed Condition
| Tensile Strength, ksi | .2% Yield Strength, ksi | % Elongation in 50mm | Hardness Max. |
| 109 | 80 | 25 | 28 HRC |
Applications:
- Electronics
- Transport and traffic
- Pulp and paper industry
- Medicine
- Fertilizers
- Valve & Pumps
- Petrochemical
- Architecture and construction
- Aerospace
- Nuclear Power
- Energy industry
- Chemicals industry
- Nickel Alloy in Pulp and Paper
- Motor industry
- Food and drink
